DG50 Manual

DG1C LASER DIAMETER GAUGE

Datasheet

The DG1C Laser Diameter Gauge is primarily used for the fast, precise and contact-less measurement of outside diameter of cylindrical or oval objects in the nominal size range of 0.05 to 10 mm. The object to be measured may be opaque or transparent (e.g. glass or plastic) and may be stationary or it may move longitudinally (for example on a drawing line) or transversely (measurement of machined parts).

The main functions of the equipment are the following:

Measurement:                    Continuous contact-less measurement and display of the outside diameter of the object

Classification:                    Classification of the object according to the measured diameter and the programmed nominal diameter and tolerances

SPC software::                  Statistical data evaluation and archiving software with chart recorder type display (optional)

PID control output:            4-20 mA analogue PID current signal for controlling the technological process (optional).

Proportional analogue

output:                              4-20 mA analogue output signal proportional to the measured diameter (e.g. for chart-recorder) (optional).

Versions:

·        XY measuring head for measuring oval objects

·        Multiple Measuring Heads with one Control Unit

·        Custom designs and individual software development

Special Variants:

·        Quality check of wire spools according to Cp and Cpk values during or after the manufacturing phase with interconnect to the spooling/manufacturing machine

·        Sender and receiver part of the Measuring head mounted separately, allowing roll-trough of individual parts or measuring wires at different stages of the drawing process by moving the measuring head up and down

Typical applications:

·        Measurement of copper wires with and without lacquer layer

·        Measurement of tungsten an molybdenum wires

·        Measurement of plastic tubes during production

·        Measurement of machined parts

Technical Specification

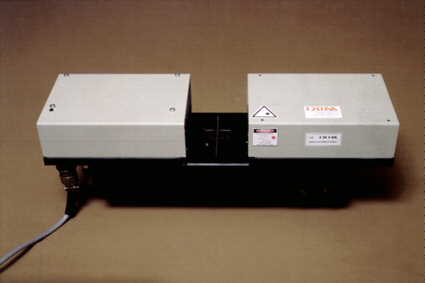

Measuring Head

Nominal measuring range ...............................................  0.05 - 10 mm[1]

Resolution of size display ......................................  0.0001 mm (0.1 mm)

Measuring rate .................................................  200 measurements/sec

Outside dimensions (as a single unit) ......................  500 x 148 x 110 mm
    Sender/Receiver individually ................................
205 x 148 x 70 mm

Weight ................................................................................  c.a. 10 kg

Ambient temperature ................................................  +10 oC ... +40 oC[2]

Ambient humidity .................................................................  max 85 %

Temperature variation ..................................................  max 10 oC/hour

Required mechanical position accuracy of the object ..................  ±1 mm

Mounting direction ........................................................................  any

Degree of protection ...................................................................  IP 50

Laser:

    Power ...........................................................................  max. 5 mW

    Wavelength ....................................................  670 nm ± 10 nm (red)

    Safety Class ..............................................................................  3A

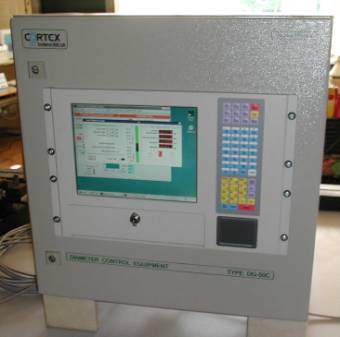

Control unit

Enclosure ................................................................................  RITTAL type AE 1360

Degree of protection ..........................................................................................  IP 54

Outside dimensions ..................................................................  600 x 600 x 350 mm

Weight ........................................................................................................  c.a. 45 kg

Power supply voltage .............................................................................  230V, 50 Hz

Power consumption ..................................................................................  ca. 350 VA

Shock protection ..............................................................................   Protective earth

Ambient temperature ....................................................................... +10 oC ... +40 oC

Ambient humidity ........................................................................................  max 85 %

Temperature variation ......................................................................  max. 10 oC/hour

Industrial PC:

Type:                                                   IPC WS-843W
CPU:                                                   Pentium
Ò MMX 233 MHz
System Memory                                  64 MB
Drives:                                                 1 Floppy + 1 HDD
Display:                                               12.1” colour TFT LCD display
                                                            with back lighting
Resolution:                                          800 x 600
Keyboard:                                            49+10 keys membrane keyboard
Pointing device                                    Touch Pad
Operating system:                              Windows 95/98/ME

Analogue Outputs (optional)

Output range:                                      4 to 20 mA current loop
                                                            (other values optional)
Output drive current:
± 5 mA (max)
Current loop excitation voltage:          + 8 V (min), 36 V (max)
Settling time:
£ 60 ms

I/O (optional)

Digital input:                                        16 optically isolated inputs
Digital output:                                      16 optically isolated outputs


Typical applications

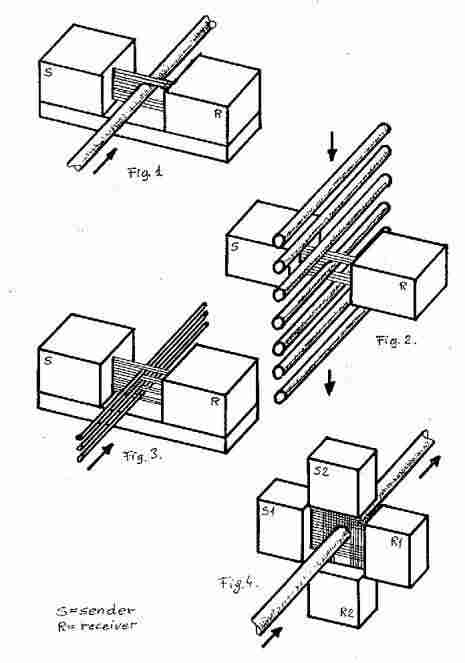

Fig. 1: Measurement on a drawing line

Fig. 2: Measurement of machined parts

Fig. 3: Simultaneous measurement of several objects

Fig. 4: Measurement of oval objects



                                                                            ã Cortex Ltd. 2002



[1] Optionally larger diameters are possible

[2] May be higher in case of water cooling, depending on cooling water temperature.
